    • Frozen Hair Grinder
      •













    • DHFSTPRP-HR24
      •

    • Frozen Hair Grinder
      •

    • After cleaning and frozen grinding, hair samples are extracted using the methanol ultrasound method and detected using liquid chromatography-tandem mass spectrometry with multiple reaction monitoring
      •




                        DHFSTPRP-HR24 frozen hair grinder utilizes a special vertical up-and-down integrated vibration mode, which achieves the desired grinding effect quickly through the high-frequency reciprocating vibration, impact, and shear of grinding beads (zirconia, steel, glass, ceramic).




















						Product Introduction





						DHFSTPRP-HR24 Frozen Hair Grinder utilizes a special vertical up-and-down integrated vibration mode, which achieves the desired grinding effect quickly through the high-frequency reciprocating vibration, impact, and shear of grinding beads (zirconia, steel, glass, ceramic). This results in samples that are more fully ground, more uniform, with better sample repeatability, and no cross-contamination between samples. Combined with the judicial appraisal technical specification SF/Z JD0107025-2018 "Liquid Chromatography-Tandem Mass Spectrometry Method for the Detection of 15 Drugs and Their Metabolites in Hair", it can quickly detect common drugs (such as heroin, methamphetamine, ketamine, ecstasy, marijuana) in hair on-site. The detection limits for various drugs have reached the requirements of the "Specifications for Hair Sample Testing of Drug-Involved Personnel" issued by the Ministry of Public Security. Since its launch, this product has been widely recognized in the industry and has received multiple innovations, as well as the acceptance report of the Key Laboratory of Toxicological Analysis of the Public Security Ministry of Beijing Public Security Bureau.





						This instrument is a recommended product in the judicial appraisal technical specification SF/Z JD0107025-2018 "Liquid Chromatography-Tandem Mass Spectrometry Method for the Detection of 15 Drugs and Their Metabolites in Hair".





















							Principle of the Product





							After cleaning and frozen grinding, hair samples are extracted using the methanol ultrasound method and detected using liquid chromatography-tandem mass spectrometry with multiple reaction monitoring (MRM) mode. Qualitative analysis is conducted by comparing the retention time, mass spectral characteristic fragment ion peaks, and relative abundance ratios of the ion pairs with those of the parallel blank samples and spiked samples for control purposes.





















								Product Features





								○ High efficiency grinding

								Simultaneously process 24 hair samples for rapid on-site grinding. The grinding equipment has a built-in program controller, making it easy to operate. It also provides feasible solutions for community drug rehabilitation and special personnel monitoring.





								○ Low-temperature grinding

								The temperature of the frozen grinding can be customized and adjusted to protect the components of the sample at low temperature and avoid destruction of the sample components.





								○ Professional grinding

								The instrument has completed nearly a thousand real sample tests in judicial centers and drug enforcement teams in Beijing, Ningbo, Sichuan, Hunan, Shanghai and other places. The positive detection rate is as high as 99%, effectively avoiding false positive interference caused by drug use.





















									Product Applications





									Sample for Grinding:





									1. Plant Tissues: roots, stems, leaves, flowers, fruits, seeds, etc.





									2. Animal Tissues: brain, heart, lung, stomach, liver, thymus, kidney, intestine, lymph nodes, muscle, bones, etc.





									3. Fungi and Bacteria: yeast, E. coli, etc.





									4. Food and Medicine: various food, pills, etc.





									5. Volatile Samples: coal, oil shale, wax products, etc.





									6. Plastics and Polymers: PE, PS, textiles, resins, etc.





									·Nucleic Acid/Protein Extraction

									Low-temperature grinding of samples can effectively inhibit nucleic acid degradation and preserve protein activity.





									·Analysis of Active Pharmaceutical Ingredients

									There are often significant differences between isomers of drug active ingredients. Low-temperature grinding can prevent molecular degradation due to pressure and heat.





									·Reducing Sample Volatility

									Low-temperature grinding can significantly reduce sample volatility and more completely retain the content of sample components.





									·Grinding Tough/Hard Samples

									For hard-to-grind samples such as tough plastics, high-strength plastics, and resins, low-temperature grinding can greatly improve grinding efficiency and effectiveness.





									homogenizer_tissuelyser





									DHFSTPRP-HR24 frozen hair grinder adopts a special vertical up-down integrated vibration mode, which achieves rapid grinding of samples through the high-frequency reciprocating vibration, impact, and shear of grinding beads (zirconia, steel, glass, ceramics). This results in more thorough and uniform grinding of samples, better sample reproducibility, and no cross-contamination between samples.

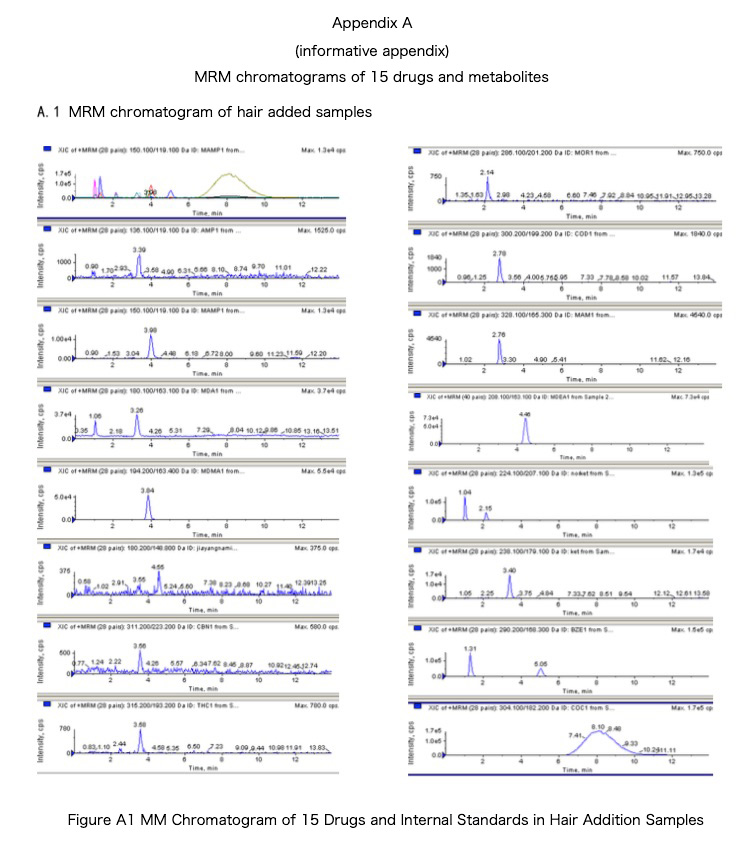

										Forensic Appraisal Technical Specification SF/Z JD0107025-2018 "Liquid Chromatography-Tandem Mass Spectrometry Detection Method for 15 Drugs and Metabolites in Hair"





										1. Sample Preparation





										1.1 Case Sample

										The hair sample is washed twice with an appropriate amount of water and acetone by shaking, then dried and cut into approximately 1mm segments. The hair segments are then frozen and ground to a powder in a cryogenic grinder. Weigh 20mg of hair powder, add 1.0mL internal standard methoxamine standard working solution (methoxamine 1ng/mL), perform ice bath sonication for 30 minutes, centrifuge, transfer the supernatant, and dry at 60°C with air flow (or a dry nitrogen blower). The residue is re-dissolved with 100μL methanol for instrument analysis.





										1.2 Blank Sample

										Take 20mg of blank hair sample, add 1.0mL internal standard methoxamine standard working solution (methoxamine 1ng/mL), and follow the same extraction procedure as described in 6.1.1 for case samples.





										1.3 Spike Sample

										Take 20mg of blank hair sample, add the suspected target compound reference material that appears in the case sample, add 1.0mL internal standard methoxamine standard working solution (methoxamine 1ng/mL), and follow the same extraction procedure as described in 6.1.1 for case samples.





										homogenizer_tissuelyser





























											Multiple operation, good effect

											Highly efficient and fast operation can complete the grinding of 2x24, 2x48, 4x96 samples within 1 minute. It saves time and effort, and has small differences between batches and within batches. The extracted protein has a higher activity and longer nucleic acid fragments.





											No cross-contamination

											The sample tubes are in a fully enclosed state during the crushing process, and disposable centrifuge tubes and beads can be used. The samples are kept intact in the tubes, avoiding cross-contamination between samples and external contamination.





											Easy operation

											1. Built-in program controller, which can set parameters such as grinding time and vibration frequency of the rotor;

											2. User-friendly operating interface.





											Good stability

											1. Adopting vertical oscillation mode for more thorough grinding and better stability;

											2. During instrument operation, the noise is less than 55dB, which will not interfere with other experiments or instruments.





											Convenient for low-temperature operation

											When a low-temperature grinding environment is required, the adapter with the sample can be immersed in liquid nitrogen for 1-2 minutes, and then moved to the main unit for quick fixation to start grinding without the need for re-freezing, saving liquid nitrogen.





											Good repeatability

											Setting the same program for the same tissue sample can obtain the same grinding effect. The working time is short, and the sample temperature does not rise.





















												Technical Parameters







												Application Fields:

												Hair grinding, tissue grinding, homogenization, cell lysis, material dispersion, preparation, sample mixing, oscillation, etc.





												Processing Capacity:

												Maximum processing capacity of 24 samples at the same time within 15 seconds, with built-in compressor for cooling





												Compatible Sample Tubes:

												24*(0.2-0.5mL) /24*2mL /6*(7-15)mL /2*25mL /2*50mL, and various specifications of grinding tubes can be customized





												Display:

												Touch screen display for convenient and intuitive operation





												Data Storage:

												Up to ten sets of experimental data can be stored, and different experimental samples are pre-set such as animal heart, spleen, lung, kidney, bone, skin, hair, etc.





												Cycle Mode:

												According to the set experimental parameters, the device can cycle through several pre-set parameter settings to further reduce human interference





												Anti-Vibration Principle:

												Innovative anti-vibration principle based on the German "schleifen-1" working mode, as well as the innovative three-dimensional motion of the grinding beads in the vertical, horizontal and rocking directions, to ensure maximum sample processing and instant crushing effect





												Maximum Feed Size:

												No specific requirements, can be adjusted according to the adapter





												Cooling function:

												Yes, adjustable from -30°C to 37°C





												Temperature control accuracy:

												+0.5°C





												Open lid operation protection:

												Electromagnetic lock





												Final particle size:

												~5µm





												Number of grinding platforms:

												(can accommodate number of grinding jars) > 2





												Fastening device:

												With automatic centering





												Homogenization speed:

												0-70 Hz/second, working time: 0 seconds to 99 minutes, user can set it





												Grinding ball diameter:

												0.1-30mm





												Grinding ball material:

												Alloy steel, chromium steel, zirconia, tungsten carbide, quartz sand





												Acceleration:

												Reaches maximum speed within 2 seconds





												Deceleration:

												Reaches lowest speed within 2 seconds





												Noise level:

												<55db





												Grinding mode:

												Wet grinding, dry grinding, and low temperature grinding are all available





												Temperature control can be additionally equipped:

												Has the ability to upgrade to ultra-low temperature liquid nitrogen refrigeration or air refrigeration





												Adapter material:

												Polytetrafluoroethylene, alloy steel





												Safety instructions:

												Fastening device with automatic centering, safety lock during operation, full protection





												Grinding kit material:

												Hard alloy, polytetrafluoroethylene (PTFE), zirconia





												Dimensions:

												630*300*480mm





												Weight:

												58 kg





















													Single Page - Color Page









													Name:

													Author:

													Action:





													Frozen Hair Grinder DHFSTPRP-HR24

													homogenizer

													Download





















														Related products







														Name:

														Model:





														Rapid hair grinding instrument

														DHFSTPRP-HP24





														Frozen Hair Grinder

														DHFSTPRP-HR24





														portable rapid hair grinder

														DH-2019
































	Product List












                	        DHFSTPRP-HR24
                            Unit





                	            Host Machine
                                Unit





                	            Adapters
                                set





                	            Cooling Adapter
                                Set





                	            Zirconia Grinding Bead No.5
                                Piece





                	            Zirconia Grinding Bead No.3
                                Piece





                	            Special Grinding Tube
                                Piece





                	            Special Bead Loading Gun
                                Set






















    Description


    1
    ?2ml,1（2 in 1）
    ?2or?1.5ml,1（2 in 1）
    1000（2 in 1）
    1000（2 in 1）
    200
    1（Optional）
